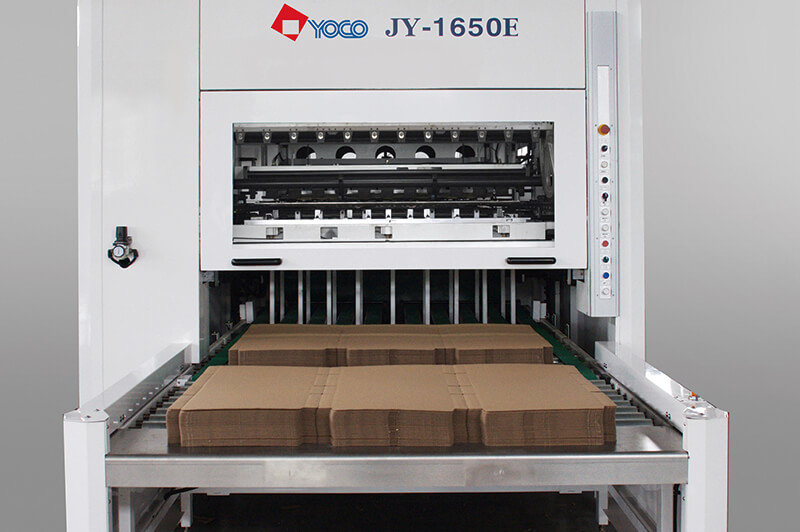

JY-1650E with Lead Edge Feeder

Product : JY Series Diecutting Machine with Lead Edge Feeder Model : JY-1650E
Availability:

Specification


Model

Modelo

JY-1650E(Lead edge feeder)

Max Sheet Size

Papel TamaƱo mƔximo

1650Ɨ1200mm (65 x47ā€™)

Min Sheet Size

Papel TamaƱo mƭnimo

680Ɨ520 mm (27 x20ā€™)

Max Diecutting Size

Troquel TamaƱo mƔximo

1630x1180 mm (64 x46ā€™)

Inside Chase Size

Troquel  TamaƱo del canal

1660x1215 mm (65 x48ā€™)

Paper Range

Gramaje del papel

Corrugated paper:2-9mm

Max Pressure

PresiĆ³n mĆ”xima

400 Tons

Min Gripper Waste

Desperdicio de cartera mĆ­nima

12mm(distance from first knife to paper edge)

Max Machine Speed

Velocidad mƔxima

5000 Sheets/Hour
Main motor power22kw

Total Power

Poder total

45Kw
Voltage380/220V, 3PH, 50/60HZ
DimensionL10000xW3450xH2600mm

Dimension( incl platform)(LxWxH)

TamaƱo de maquinaļ¼ˆPlataforma incluidaļ¼‰

L11130xW6000xH2600mm

(437 x236 x98ā€™)

Total Weight(excl. feeder)

Peso de la maquina(Sin contar la cocina)

33Tons


Video


ā—† 1650E Leading edge feeder, 3 layers job
